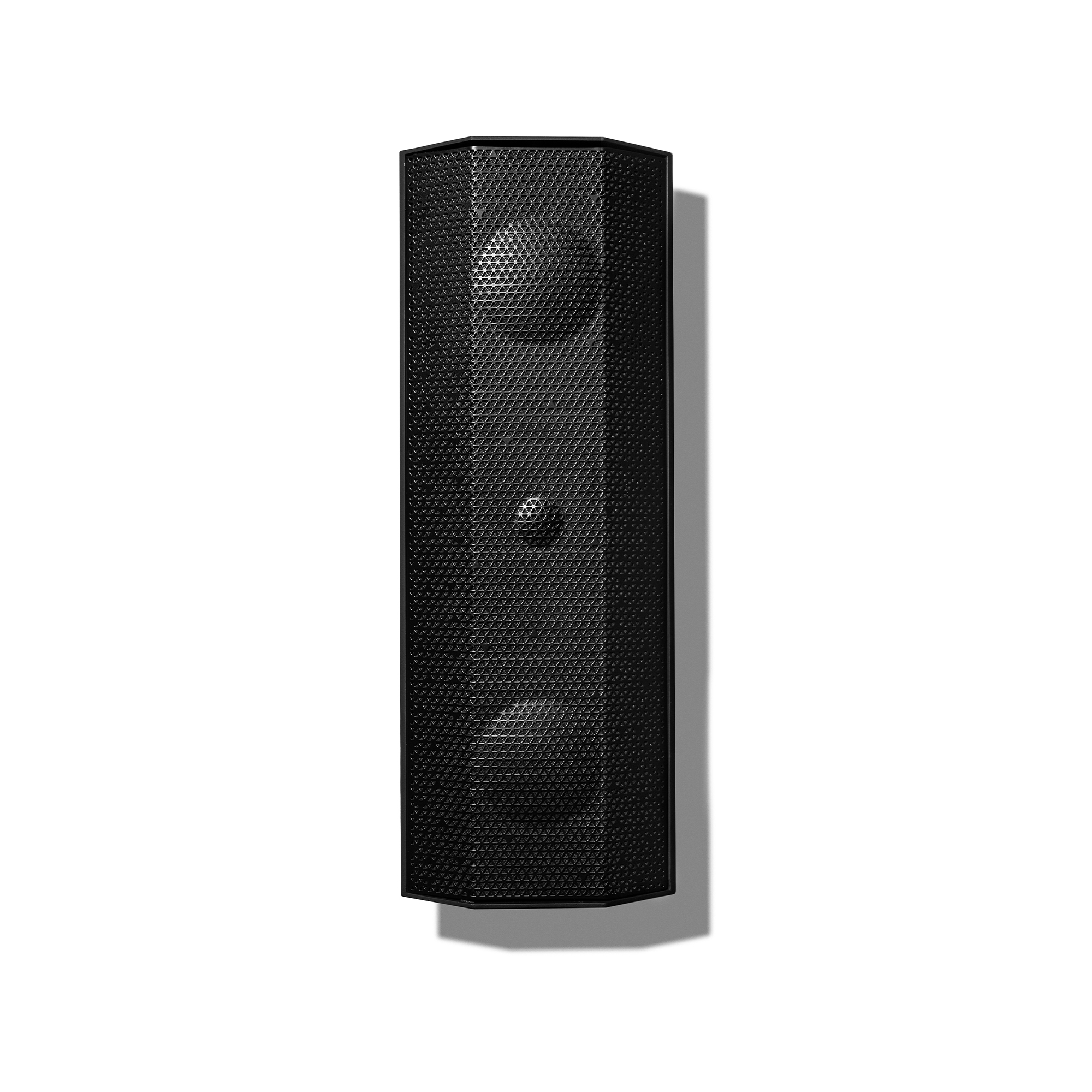

Lithe Audio IO1 Indoor & Outdoor Wi-Fi Speaker - Master

COMING SOON
Lithe Audio IO1 Indoor & Outdoor Wi-Fi Speaker - Master
  Zoom
Lithe Audio IO1 Indoor & Outdoor Wi-Fi Speaker - MasterLithe Audio IO1 Indoor & Outdoor Wi-Fi Speaker - MasterLithe Audio IO1 Indoor & Outdoor Wi-Fi Speaker - MasterLithe Audio IO1 Indoor & Outdoor Wi-Fi Speaker - MasterLithe Audio IO1 Indoor & Outdoor Wi-Fi Speaker - MasterLithe Audio IO1 Indoor & Outdoor Wi-Fi Speaker - Master
RRP:  Please CALL
(£0.00 ex VAT)
SKU:  06800

STEP 2: CHOOSE YOUR MODULES





Description

The iO1 speaker can be used indoors and outdoors with six different orientations. Connect to the speakers wirelessly or via a data cable. With a powerful amplifier and connectivity all built in, this active surface mount speaker delivers audio quality and installation convenience.






One Speaker. Six Ways.®

Discover the versatility of this remarkable speaker with these visual interactions.


Perfect for

The All-In-One solution makes these unique speakers perfect for living rooms, kitchens, gardens, and patios.

the technical bit

Simply power your speakers via a plug or outdoor socket. Connect your TV or turntable, for example, through our hardwired connections and stream your music wirelessly from your phone or tablet.

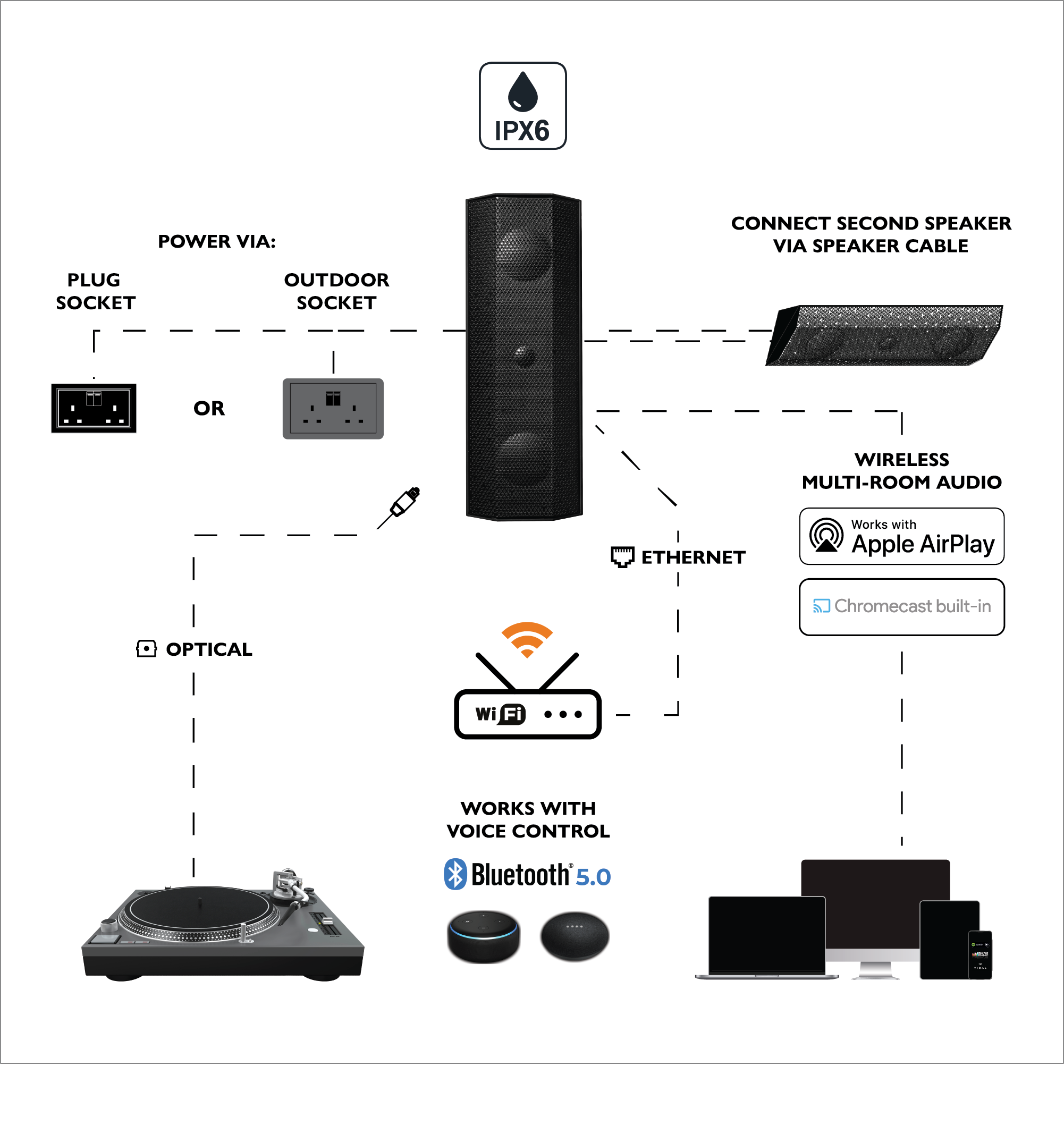

Connections diagram

Features

  • Weather-resistant and waterproof (IPX6 Rated) speaker
  • Mount 6 different ways to suit your install requirement
  • Amplifier and Wi-Fi all built-in, just add power
  • Connect to plug/outdoor socket or any power source available (230V or 110V supply)
  • Stream music directly from your smart phone or tablet to control multiple rooms
    at the same time
  • Connect multiple iO1's and Lithe Audio Ceiling Speakers for a whole home, indoor and outdoor audio experience
  • Fully adjustable EQ via Lithe App to deliver fine tuned optimal sound
  • Wireless and wired connections to use with any streaming service or cabled equipment

Speaker spec

  • Dimensions: (H X W X D) 465 X 170 X 100mm
    (18.3 X 6.7 X 3.9in)
  • Power Input Supply: 100 - 240V, 50/60Hz / 2.5A

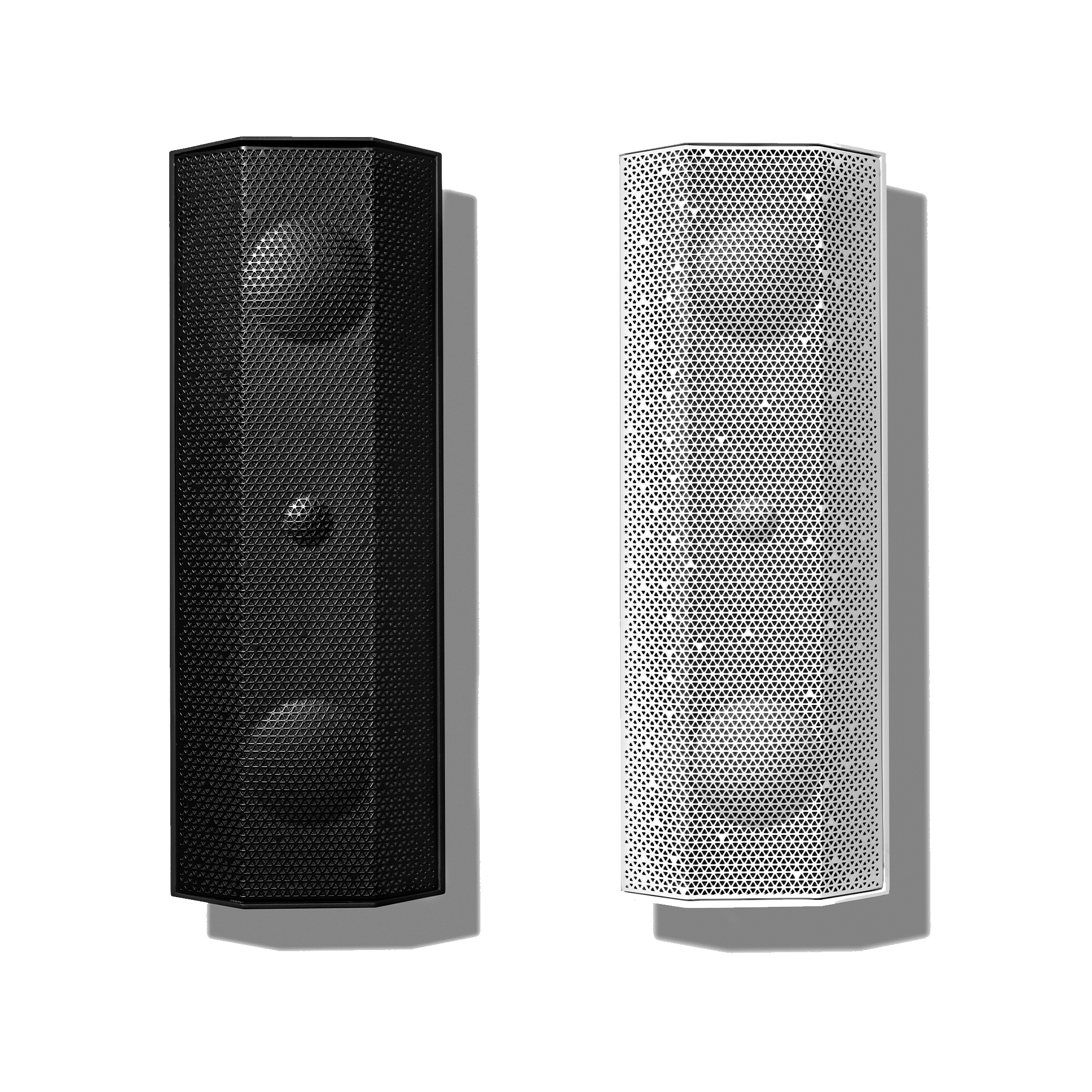

  • Colour: Black Matt or White
  • Woofer: 2 x 3" Waterproof Coated Paper Cone
  • Tweeter: 0.75" Waterproof Coated Silk Dome
  • Weight: 2.7kg (6lbs)
  • IP Rating: IPX6
  • Aluminium Front Grille
  • 2 Year Warranty

Connectivity

  • Wi-Fi Certified 2.4Ghz/5Ghz (802.11a/b/g/n/ac)
  • 10/100 Ethernet Ports (In/Out)
  • Apple AirPlay 2
  • Google Chromecast
  • Works with OK Google
  • Spotify Connect
  • Bluetooth 5.0
  • Optical
  • Passive speaker output
  • WiFi (Internet Radio)

What's in the box

Single (Master) Speaker

  • IO1 Surface Mount Speaker (Active)
  • Power Supply
  • Mounting Bracket
  • Instruction Manual

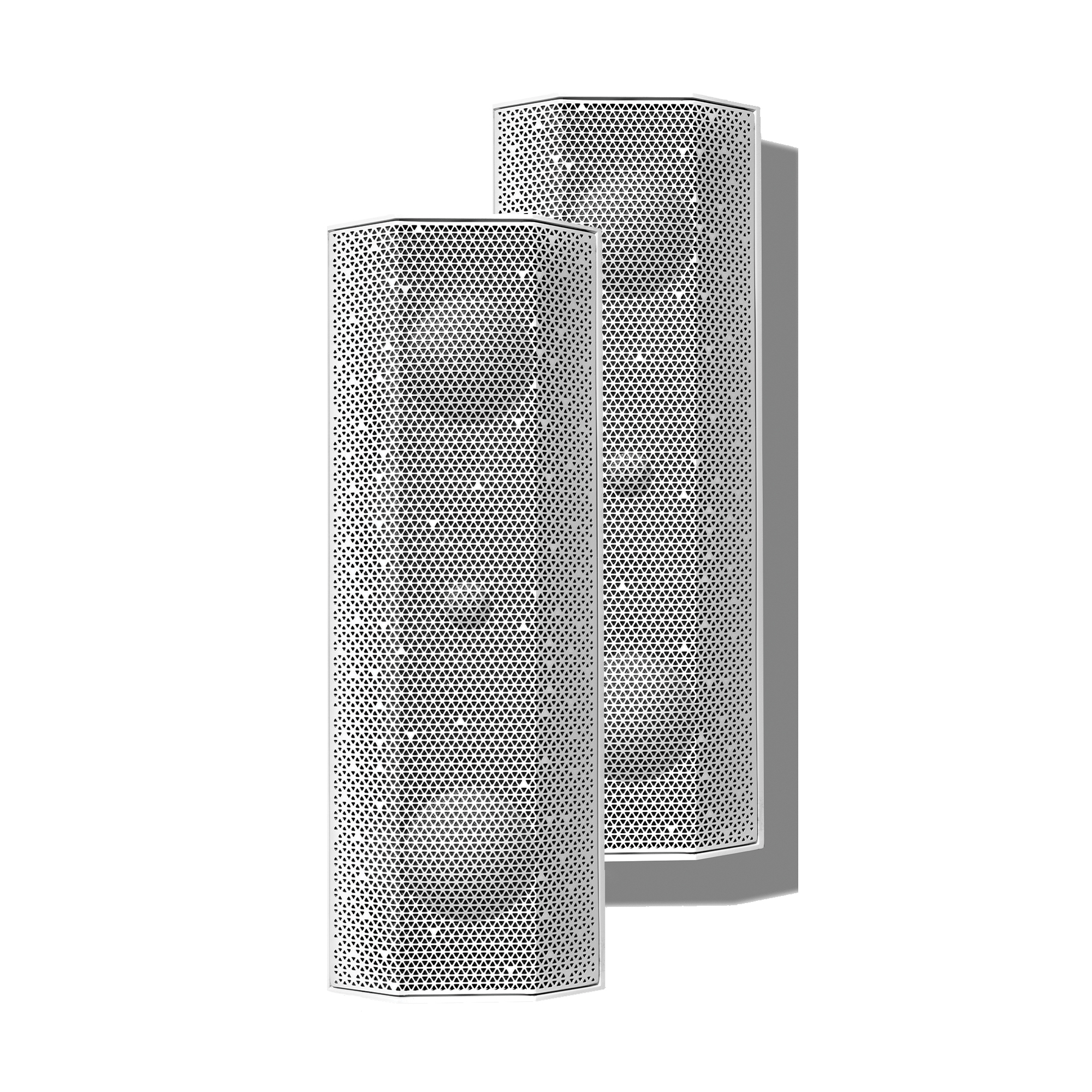

Pair (Master + Passive) Speaker

  • IO1 Surface Mount Speaker (Active)
  • IO1 Surface Mount Speaker (Passive)
  • 16AWG Speaker Cable 7m
  • Power Supply
  • Mounting Bracket (2)
  • Instruction Manual

Audio spec

  • RMS Power: 100W RMS (2x 50W)
  • Frequency Response 55Hz - 20KHz (+/- 3dB)
  • Impedance: 4 Ohms nominal (8 8)
  • Sound Quality THD+N <0.01%
  • Sensitivity (1W/1m): 82dB
  • Line In Analog (Optical), auto-detecting
  • Type: CLass D (Digital)
  • Audio Compression: 192kHz / 24 bits

Common questions

Please see below most commonly asked questions, any further answers can be found within support

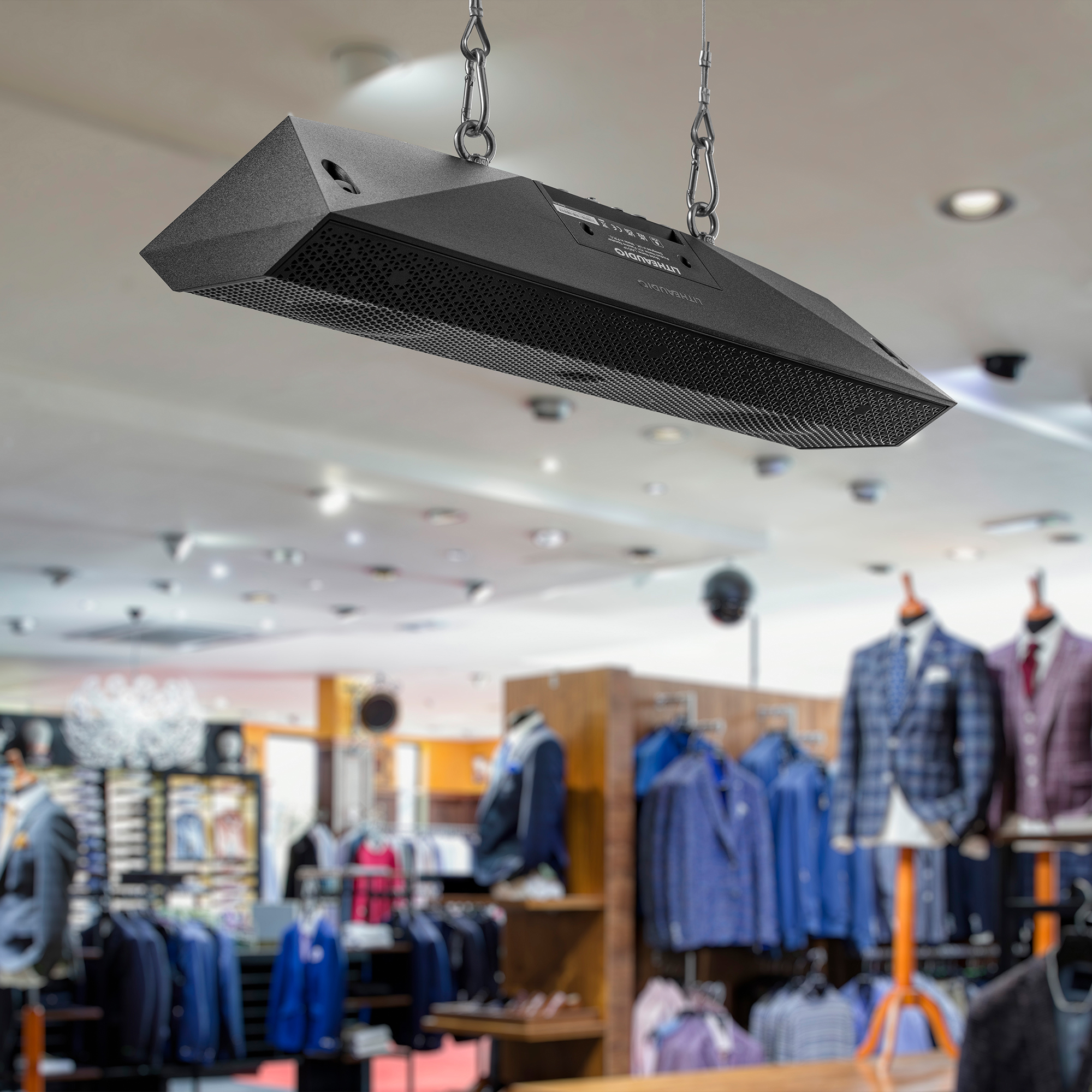

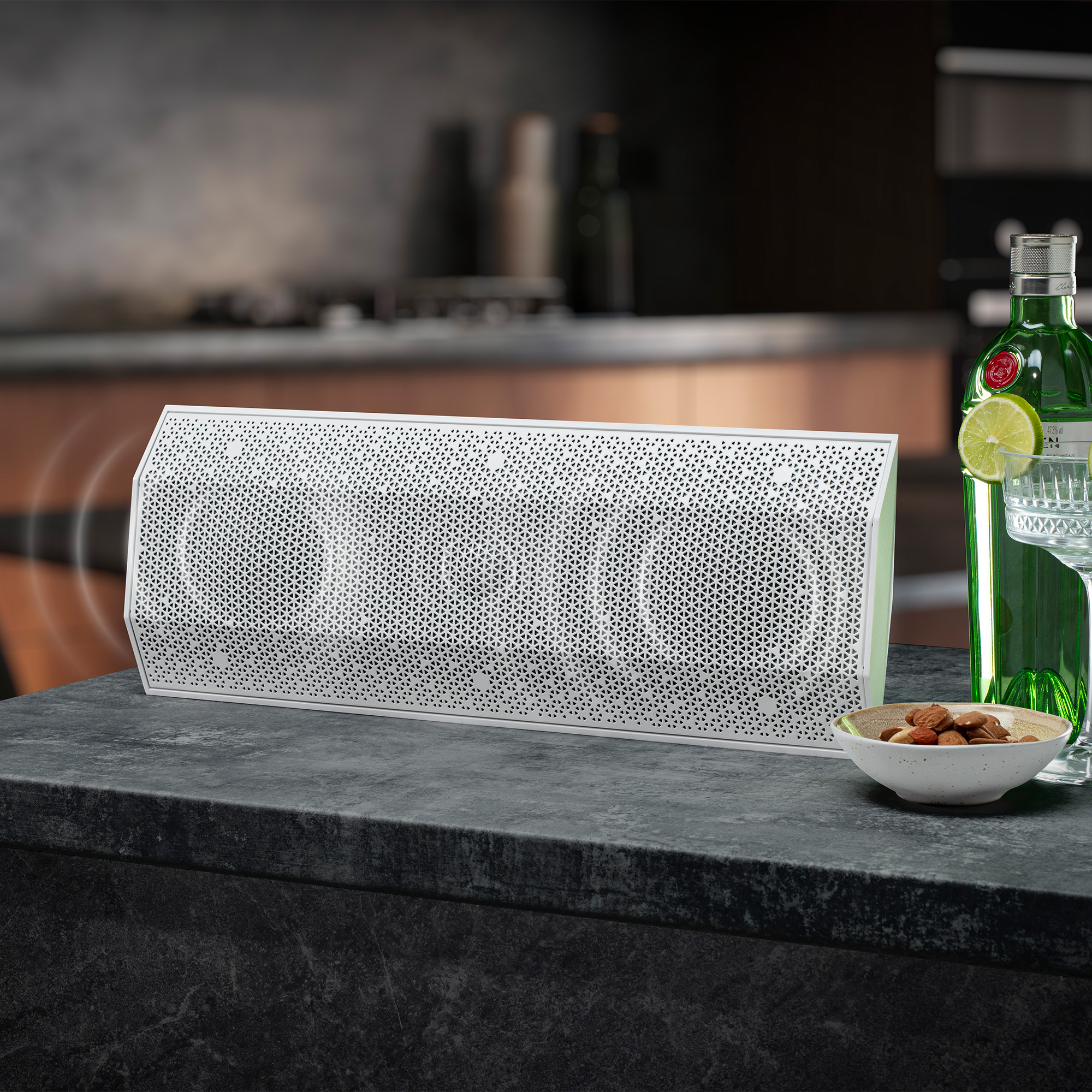

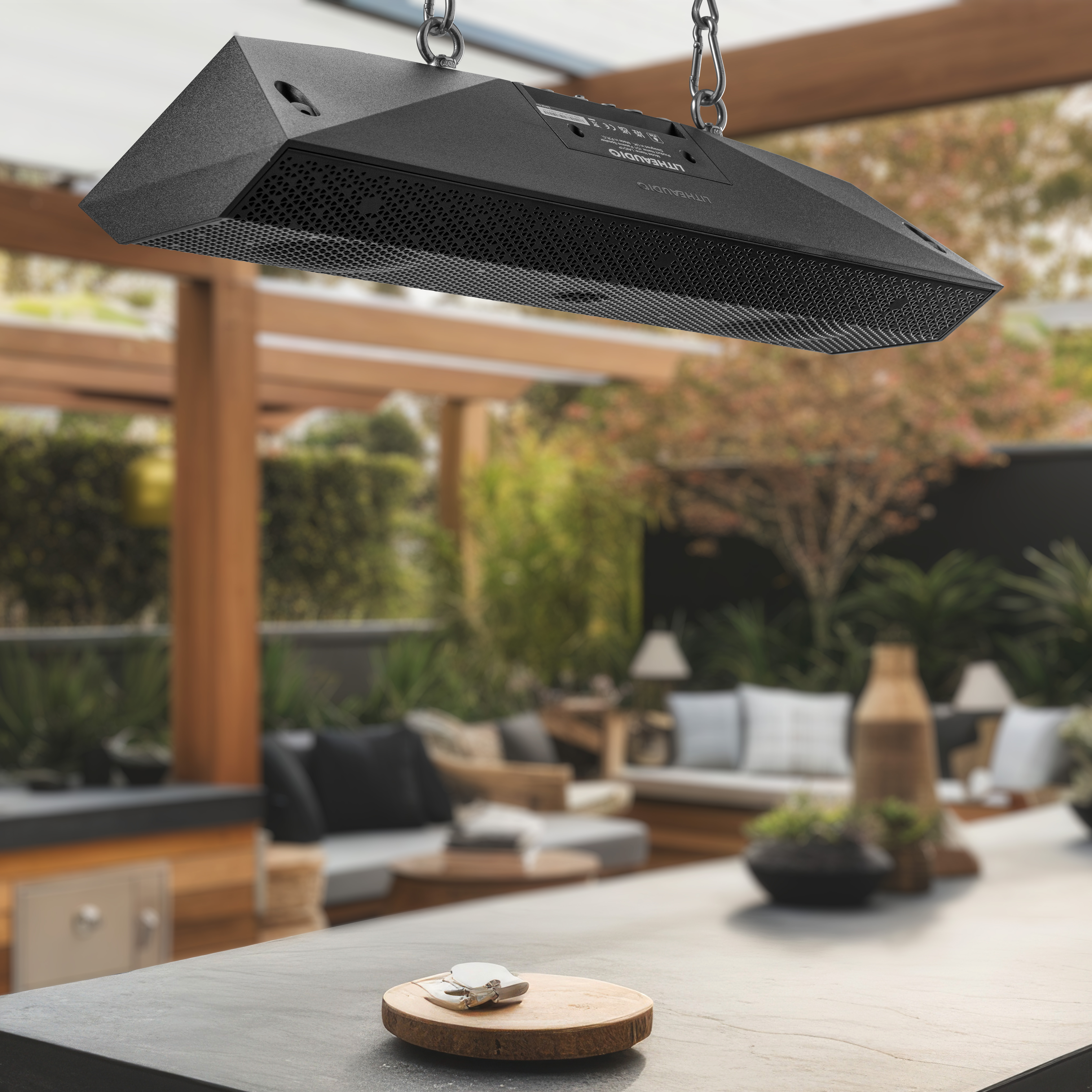

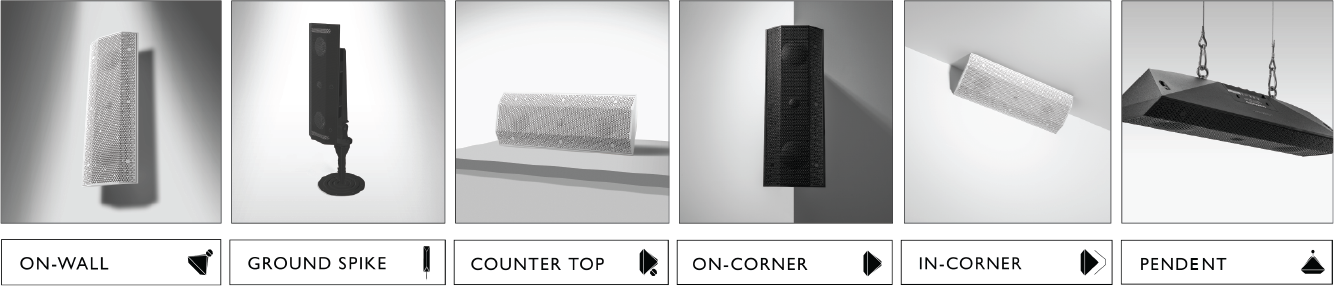

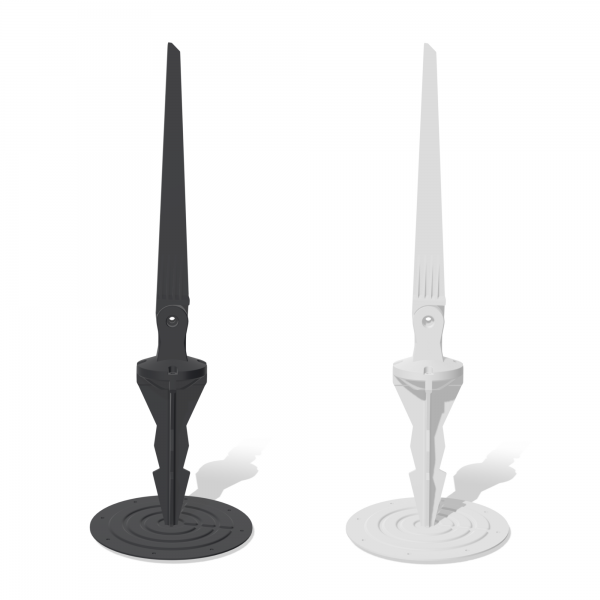

There are 6 ways you can mount the speaker: 1) Directly on a corner 2) Mount in a corner 3) Mount the speaker on a flat wall 4) As a soundbar (Horizontal Mode) as a Countertop speaker. 5) Pendent mount via Eyelet Kit (Sold Separately) enabling suspending from ceiling or above 6) Using the add-on garden spike (Sold Separately) , mount the speaker directly into the soft ground

The IO1 speakers have Airplay 2, Chromecast and Spotify Connect built in. So, you can wirelessly play across your network via your Android or IOS device. You can also use Multi-room Audio with other Airplay 2 or Chromecast speakers! The IO1 also has Bluetooth and Optical inputs for you to use to connect an independent source.

So as an Optical input is a fixed volume rate, this means that the volume will not be able to change via the connected device like a TV. You will need to adjust the volume via the Lithe Audio APP using the volume bar to adjust,

You can only have one Passive IO1 connected to the Master IO1. If you want more IO1 speakers, you will need 1 Passive for 1 Master and then you can group all the speakers via Airplay and Chromecast to have them play at unison. Example 4 speaker setup: Require 2 Pairs (Master + Slave)

We recommend a pair of IO1 speakers, you shall need a pair of IO1 speakers if you want stereo audio in rooms/spaces of 4m x 4m, to 7m x 5m.  The same applies outdoors. The key is the listening area and positioning of the speakers. We offer a speaker placement service to help you https://www.litheaudio.com/speaker-placement-support.html

 How do I adjust the IO1 sound to suit the mounting method

Using the Lithe Audio APP, you can adjust the EQ settings for the IO1 speaker. There are presets which we have fine tuned which are Outdoor, Indoor and Pendent. So, depending how you have your speaker setup, select the corresponding Preset. You can also adjust the Treble and pitch for further tuning.

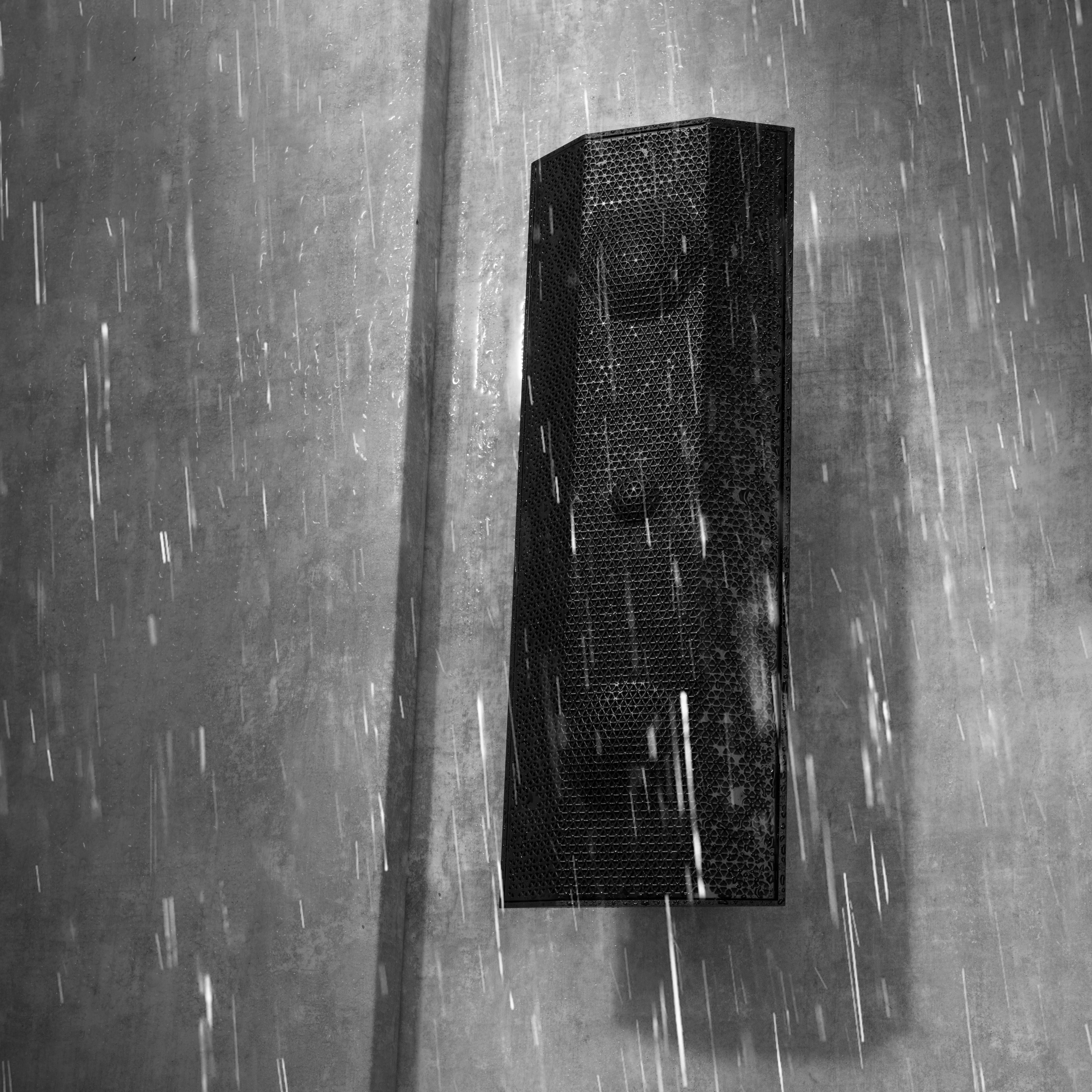

Yes, our IO1 speaker is IPX6 rated, so can be left outdoors fully weather proof.



You may also like

COMING SOON

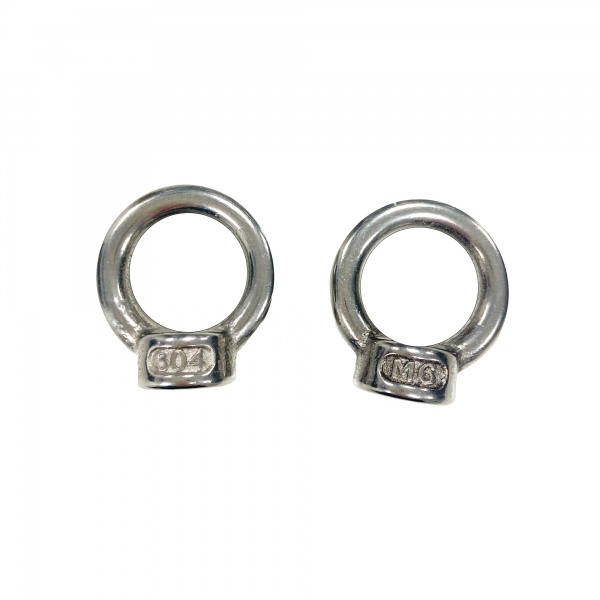

IO1 Eyelet Kit (Single)
